Nexus 320 Automatic System for Pump Fed Setup

The Nexus 320 Automatic System is an upgrade kit that fully automates the regular cleaning cycle of a pump-fed Nexus 320 pond filter, eliminating the need for manual operation of valves and pumps. The system uses an electronic control box with a timer to manage the process, allowing for hands-free maintenance

Overview of the Automatic Cleaning Process

The automation system handles all the key steps of the cleaning cycle, which typically lasts around 10 minutes.
Initiation: An adjustable timer, factory-set to every three days (but can be changed from once an hour to every 10 days), triggers the cleaning cycle. A manual cleaning can also be started with a button on the control box.

Pump Shutdown: The control box automatically switches off the main circulating pump.
Water Level Equalization: The water level inside the Nexus filter equalizes.

Media Cleaning (Eazy): Air is diverted from the outer biological chamber to the inner mechanical (Eazy) chamber, causing the K1 Micro media to vigorously agitate and dislodge trapped solid waste.

Waste Removal: After the agitation phase, an automated waste valve opens, and the Eazy chamber is drained to a waste outlet.

Return to Filtration: The waste valve closes, air is redirected back to the outer bio-chamber, the circulating pump is switched back on, and the system resumes normal filtration.

Key Features

Hassle-Free Maintenance: Automates the previously manual process of turning ball valves and switching pumps off and on.

Easy Installation: The kit is designed to be easily installed on post-2006 Nexus 320 models, which come "auto ready" with factory-fitted fixings.

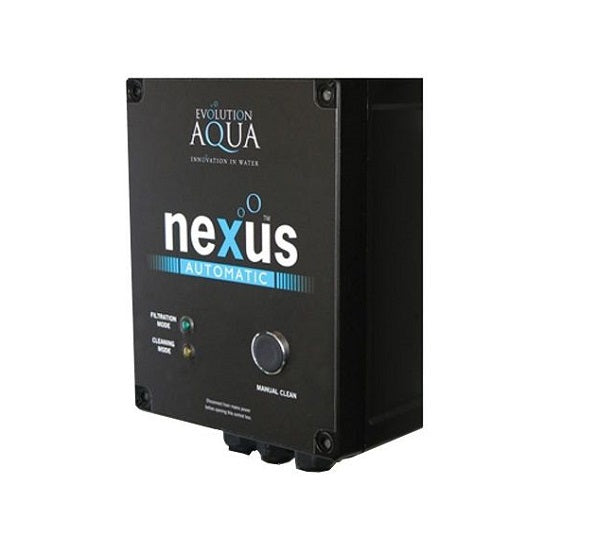

Electronic Control: An electronic control box manages all components, including the automated waste valve and air pump control.

Adjustable Frequency: The frequency of the cleaning cycle can be customized to suit specific pond requirements, which also assists with performing regular water changes.

Water Exchange: Each cleaning cycle sends a certain amount of water (e.g., around 200 litres for the Nexus 320) to waste, contributing to recommended weekly water changes.

An automatic top-up system is recommended to compensate for this water loss.
This system ensures crystal clear and healthy pond water with minimal user intervention.

Please allow up to 10 working days for delivery.
