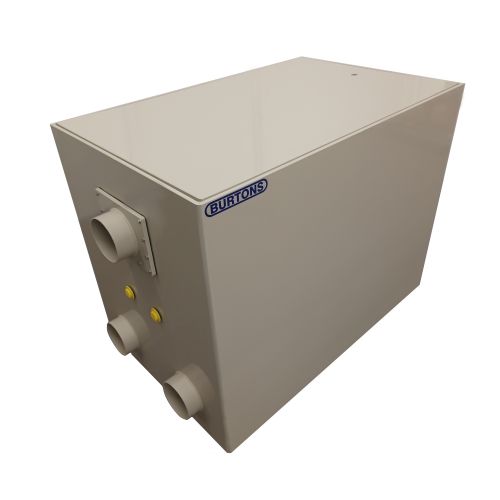

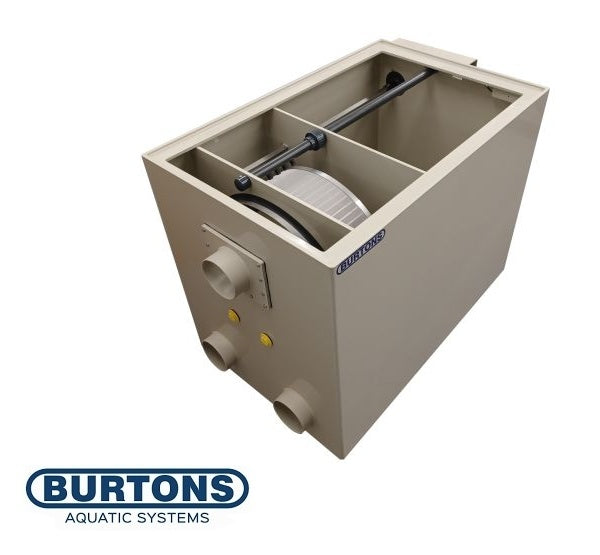

Burtons BD-150 Combi Pond Drum Filter

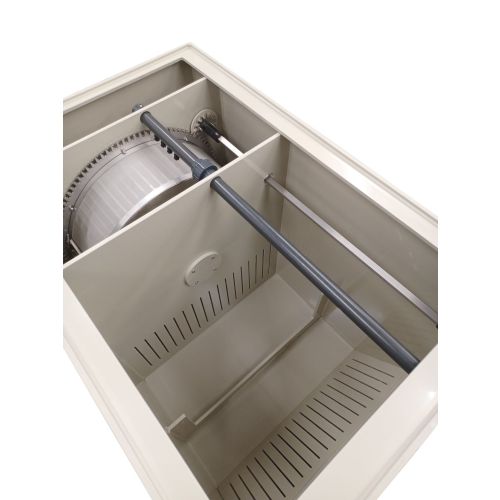

The Burtons Combi Filters are a high-capacity, automated pond filtration unit used in large koi and ornamental ponds to keep water clear and healthy. They combine a mechanical drum filter, which uses a 60 micron rotating screen to remove fine debris. These filters also have an integrated biological chamber that you can fill with media to support beneficial bacteria that break down harmful ammonia and nitrites.

Designed for both gravity-fed and pump-fed systems, these filters feature multiple 110mm inlets and outlets, a built-in automatic wash pump to clean the screen with minimal manual maintenance, and options to add UV clarifiers to reduce green water, all controlled through a weatherproof control box for easy installation and reliable filtration performance.

• Now including Burtons Aquatics' Socket Panel as standard
• Now with Bluetooth Technology*
• 60 micron screen
• Water Height 170mm from the top of the unit
• 15,000 ltr per hour max flowrate - Recommended flow rate of 8,000 - 10000 lph
• 2 x 110mm inlets
• 2 x 110mm outlets, plus 2 x 110mm additional outlets before the bio section which are on each side of the unit.

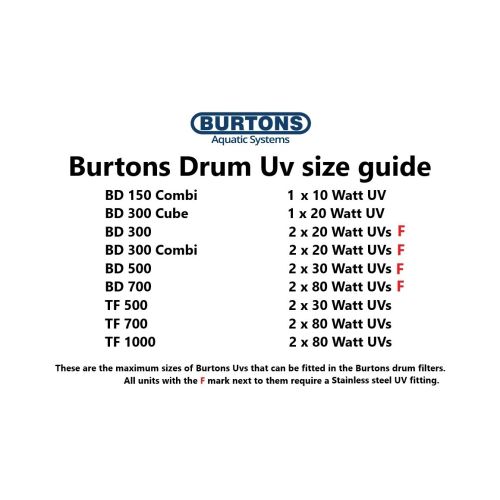

• 1 x 10 watt Uv can be added. (2nd 10 watt Uv can be added if connected to the Uv plug socket outlet). As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.

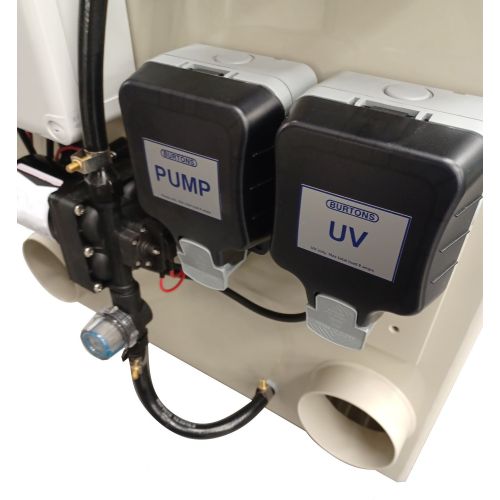

• Low wattage wash pump included and pre fitted
• Low energy consumption 1.3 watts in standby mode and 150 watts when cleaning.

• Available for both Gravity Fed and Pump Fed systems.

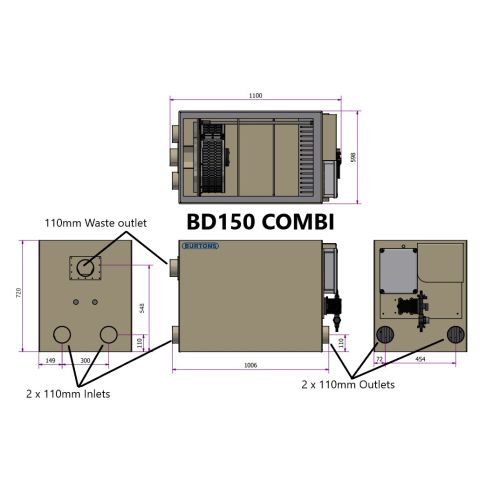

Dimensions (WHL): 600mm x 720mm x 1120mm
Standard Guarantee period: 2 Years
Flow Rate: 15,000 Lph Max - Recommended 8,000 - 10,000 Lph
Number of Spray Tips: 4
Inlets/Outlets: 2 x 110mm Inlets, 2 x 110mm Outlets

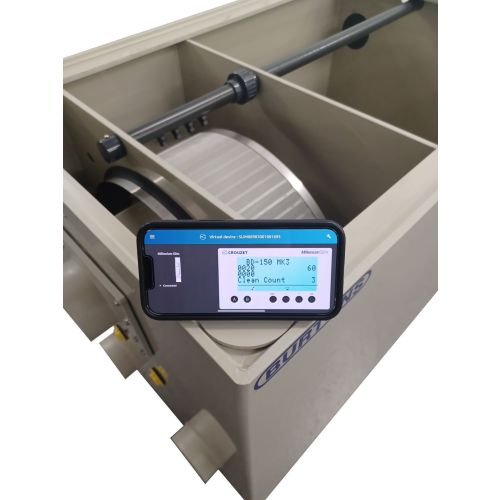

*To access the control you need to download the Crouzet Virtual Display app on the App store for Apple devices or Google Play Store for Android devices. This app works with most smart phones and tablets. Mobile device not included.

Designed and manufactured in the UK by Burtons.
